引言

大家好像对分析源码厌倦了,说实在我也会厌倦,不过不看是无法分析其后面的东西,从易到难是一个必要的过程。

今天说下EventBus,前几天园里的大神已经把其解刨,我今天就借着大神的肩膀,分析下在eShop项目中EventBus的实现。

解析源码

我们知道使用EventBus是为了解除Publisher和Subscriber之间的依赖性,这样我们的Publisher就不需要知道有多少Subscribers,只需要通过EventBus进行注册管理就好了,在eShop项目中,有一个这样的接口IEventBus(eShopOnContainers\src\BuildingBlocks\EventBus\EventBus\Abstractions)

public interface IEventBus
{    void Subscribe<T, TH>(Func<TH> handler)
  where T : IntegrationEvent
    where TH : IIntegrationEventHandler<T>;
      void Unsubscribe<T, TH>()
        where TH : IIntegrationEventHandler<T>
            where T : IntegrationEvent;
     void Publish(IntegrationEvent @event);
}

我们可以看到这个接口定义了EventBus所需的一些操作, 对比大神的EventBus,相关功能都是一致的,我们看下它的实现类:EventBusRabbitMQ,从名字上可以看出,这是一个通过RabbitMQ来进行管理的EventBus,我们可以看到它使用了IEventBusSubscriptionsManager进行订阅存储,也就是大神文中的:

private readonly ConcurrentDictionary<Type, List<Type>> _eventAndHandlerMapping;

微软在Demo中把其提取出了接口,把一些常用方法给提炼了出来,但是核心还是Dictionary<string, List<Delegate>>, 使用Dictionary进行Map映射。通过Subscribe和UnSubscribe进行订阅和取消,使用Publish方法进行发布操作。

public void Subscribe<T, TH>(Func<TH> handler)
  where T : IntegrationEvent
  where TH : IIntegrationEventHandler<T>{
   var eventName = typeof(T).Name;
    var containsKey = _subsManager.HasSubscriptionsForEvent<T>();
    if (!containsKey)
     {
        if (!_persistentConnection.IsConnected)
        {
            _persistentConnection.TryConnect();
        }
        using (var channel = _persistentConnection.CreateModel())
        {
            channel.QueueBind(queue: _queueName,
                                exchange: BROKER_NAME,
                                routingKey: eventName);
        }
    }

    _subsManager.AddSubscription<T, TH>(handler);

}

我们看到在订阅的时候,EventBus会检查下在Map中是否有相应的注册,如果没有的话首先回去RabbitMQ中创建一个新的channel进行绑定,随后在Map中进行注册映射。

UnSubscribe则直接从Map中取消映射,通过OnEventRemoved事件判断Map下此映射的subscriber是否为空,为空则从RabbitMQ中关闭channel。

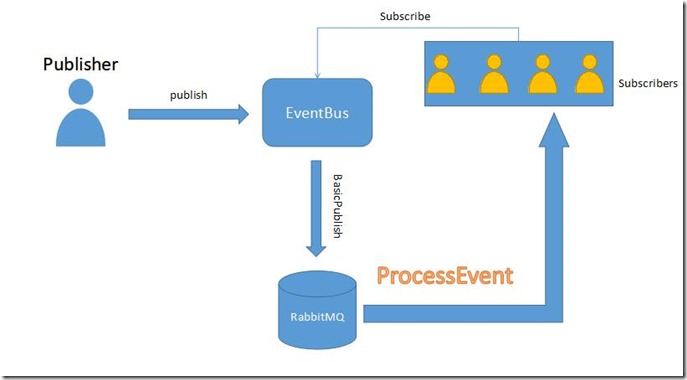

在RabbitMQ的构造方法中,我们看到这样一个创建:CreateConsumerChannel(),这里创建了一个EventingBasicConsumer,当Queue中有新的消息时会通过ProcessEvent执行Map中注册的handler(subscribers),看图可能更清晰些:


Event In eShop

在ProcessEvent方法中,回去Map中找寻subscribers,然后通过动态反射进行执行:

private async Task ProcessEvent(string eventName, string message)
{
     if (_subsManager.HasSubscriptionsForEvent(eventName))
    {
        var eventType = _subsManager.GetEventTypeByName(eventName);
        var integrationEvent = JsonConvert.DeserializeObject(message, eventType);
        var handlers = _subsManager.GetHandlersForEvent(eventName);
        foreach (var handlerfactory in handlers)
        {
             var handler = handlerfactory.DynamicInvoke();
           var concreteType = typeof(IIntegrationEventHandler<>).MakeGenericType(eventType);
           await (Task)concreteType.GetMethod("Handle").Invoke(handler, new object[] { integrationEvent });
        }
    }
}

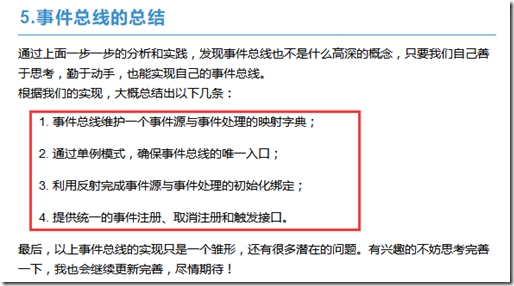

微软通过简单的代码解耦了Publisher和Subscribers之间的依赖关系,我们引用大神的总结:


应用

在catalog.api中,微软出现了EventBus,我在上一篇中也提到了,这是我的一个疑惑,因为在catalog中并没有订阅操作,直接执行了Publish操作,原先以为是一个空操作,后来看了Basket.Api我才知道为何微软要用RabbitMQ。

使用RabbitMQ,我们不仅是从类之间的解耦,更可以跨项目,跨语言,跨平台的解耦,publisher仅仅需要把消息体(IntegrationEvent)传送到RabbitMQ,Consumer从Queue中获取消息体,然后推送到Subscribers执行相应的操作。我们看下Basket.Api.Startup.cs:

protected virtual void ConfigureEventBus(IApplicationBuilder app)
{    var catalogPriceHandler = app.ApplicationServices
        .GetService<IIntegrationEventHandler<ProductPriceChangedIntegrationEvent>>();    var orderStartedHandler = app.ApplicationServices
        .GetService<IIntegrationEventHandler<OrderStartedIntegrationEvent>>();    var eventBus = app.ApplicationServices.GetRequiredService<IEventBus>();

    eventBus.Subscribe<ProductPriceChangedIntegrationEvent, ProductPriceChangedIntegrationEventHandler>
        (() => app.ApplicationServices.GetRequiredService<ProductPriceChangedIntegrationEventHandler>());

    eventBus.Subscribe<OrderStartedIntegrationEvent, OrderStartedIntegrationEventHandler>
        (() => app.ApplicationServices.GetRequiredService<OrderStartedIntegrationEventHandler>());
}

在这个方法里,我们看到了Subscribe操作,想想之前的提问有点搞笑,不过研究明白了也不错,对吧!

总结

今天我们看了EventBus在Demo中的应用,总结一下。

1、EventBus可以很好的解耦订阅者和发布者之间的依赖

2、使用RabbitMQ能够跨项目、跨平台、跨语言的解耦订阅者和发布者

虽然在Demo中我们看到对订阅者的管理是通过Dictionary内存的方式,所以我们的Subscribe仅仅只在Basket.Api中看到,但微软是通过IEventBusSubscriptionsManager接口定义的,我们可以通过自己的需求来进行定制,可以做成分布式的,比如使用memcached。

写在最后

每个月到下旬就会比较忙,所以文章发布会比较慢,但我也会坚持学习完eShop的,为了学习,我建了个群,大家可以进来一起学习,有什么建议和问题都可以进来哦。

eShop虽好,但不建议大家放到生产环境,毕竟是一个Demo,而且目前还是ALPHA版本,用来学习是一个很好的教材,这就是一个大杂烩,学习中你会学到很多新的东西,大家如果看好core的发展,可以一起研究下。
