最近在做微服务的时候，由于我们是采用前后端分离来开发的，提供给前端的直接是Swagger，如果Swagger分布在各个API中，前端查看Swagger的时候非常不便，因此，我们试着将Swagger集中放到网关中。
这里我用两个API项目（一个BasicDataApi，一个UsersApi）和一个网关项目（ApiGateway）做示例，下面直接上代码。
首先在BasicDataApi中配置Swagger：
public void ConfigureServices(IServiceCollection services)
{
services.AddMvc();
services.AddSwaggerGen(options =>
{
options.SwaggerDoc("BasicDataApi", new Info { Title = "基础数据服务", Version = "v1" });
var basePath = PlatformServices.Default.Application.ApplicationBasePath;
var xmlPath = Path.Combine(basePath, "Qka.BasicDataApi.xml");
options.IncludeXmlComments(xmlPath);
});
}
public void Configure(IApplicationBuilder app, IHostingEnvironment env, ILoggerFactory loggerFactory)
{
app.UseMvc()
.UseSwagger(c =>
{
c.RouteTemplate = "{documentName}/swagger.json";
})
.UseSwaggerUI(options =>
{
options.SwaggerEndpoint("/BasicDataApi/swagger.json", "BasicDataApi");
});
}
在UsersApi中一样的配置：
public void ConfigureServices(IServiceCollection services)
{
services.AddSwaggerGen(options =>
{
options.SwaggerDoc("UsersApi", new Info { Title = "用户API接口", Version = "v1" });
var basePath = PlatformServices.Default.Application.ApplicationBasePath;
var xmlPath = Path.Combine(basePath, "Qka.UsersApi.xml");
options.IncludeXmlComments(xmlPath);
});
services.AddMvc();
}
public void Configure(IApplicationBuilder app, IHostingEnvironment env, ILoggerFactory loggerFactory)
{
app.UseMvc()
.UseSwagger(c =>
{
c.RouteTemplate = "{documentName}/swagger.json";
})
.UseSwaggerUI(options =>
{
options.SwaggerEndpoint("/UsersApi/swagger.json", "UsersApi");
});
}
最后在网关项目中修改Ocelot配置，获取两个项目的swagger.json不要授权：
"ReRoutes": [
{
"DownstreamPathTemplate": "/UsersApi/swagger.json",
"DownstreamScheme": "http",
"ServiceName": "userapi",
"LoadBalancer": "RoundRobin",
"UseServiceDiscovery": true,
"UpstreamPathTemplate": "/UsersApi/swagger.json",
"UpstreamHttpMethod": [ "GET", "POST", "DELETE", "PUT" ]
},
{
"DownstreamPathTemplate": "/BasicDataApi/swagger.json",
"DownstreamScheme": "http",
"ServiceName": "basedataapi",
"LoadBalancer": "RoundRobin",
"UseServiceDiscovery": true,
"UpstreamPathTemplate": "/BasicDataApi/swagger.json",
"UpstreamHttpMethod": [ "GET", "POST", "DELETE", "PUT" ]
},
{
"DownstreamPathTemplate": "/UsersApi/{url}",
"DownstreamScheme": "http",
"ServiceName": "userapi",
"LoadBalancer": "RoundRobin",
"UseServiceDiscovery": true,
"UpstreamPathTemplate": "/UsersApi/{url}",
"UpstreamHttpMethod": [ "GET", "POST", "DELETE", "PUT" ] ,
"AuthenticationOptions": {
"AuthenticationProviderKey": "qka_api",
"AllowedScopes": []
}
}
],
"GlobalConfiguration": {
"BaseUrl": "http://localhost:9000",
"ServiceDiscoveryProvider": {
"Host": "192.168.2.144",
"Port": 8500
}
}
}
修改StartUp.cs文件的代码，注意在使用中间件的时候，UseMvc一定要在UseOcelot之前。
public void ConfigureServices(IServiceCollection services)
{
services.AddOcelot();
var authenticationProviderKey = "qka_api";
services.AddAuthentication("Bearer")
.AddIdentityServerAuthentication(authenticationProviderKey, options =>
{
options.Authority = "http://192.168.2.121:9066/";
options.RequireHttpsMetadata = false;
options.ApiName = "UserApi";
});
services.AddMvc();
services.AddSwaggerGen(options =>
{
options.SwaggerDoc("ApiGateway", new Info { Title = "网关服务", Version = "v1" });
});
}
public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{
app.UseMetricsAllMiddleware();
app.UseMetricsAllEndpoints();
app.UseCors("default");
var apis = new List<string> { "BasicDataApi", "UsersApi" };
app.UseMvc()
.UseSwagger()
.UseSwaggerUI(options =>
{
apis.ForEach(m =>
{
options.SwaggerEndpoint($"/{m}/swagger.json", m);
});
});
app.UseOcelot().Wait();
}

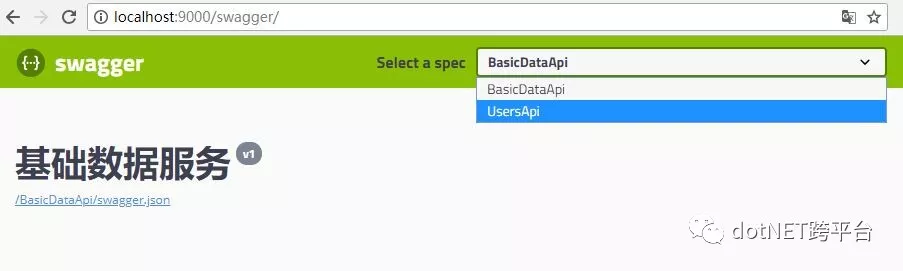

最后上图：
